Weidmüller Klippon Plastic Enclosures

Our high-performance products are designed and manufactured to the highest standards in the industry.

Light, Resistant, and Reliable

Klippon polyester and polycarbonate enclosures are ideal high-quality solutions for electrical connectivity applications. They are suitable wherever high protection classes or corrosion and shock resistance are required. The polycarbonate enclosures from the MPC and FPC ranges are ideal for enclosing electrical, electro-mechanical, and pneumatic devices, as well as circuit boards - even in situations with extreme mechanical and chemical conditions. The Klippon POK polyester enclosures have also been designed and certified for use in harsh environment applications.

The end-products, developed and crafted exclusively for you, are assembled from high quality individual components. With our products and services for assembled enclosures, your targets can be reached - fast, flexible and cost-effective. They satisfy the extraordinary protection requirements for all kind of field applications. Secure, robust and functional enclosures with optimised sealing system ensure high IP protection levels.

Klippon plastic enclosures

The polyester and polycarbonate enclosures provide a high quality solution for all electrical connectivity applications, including those located within harsh environments

Products

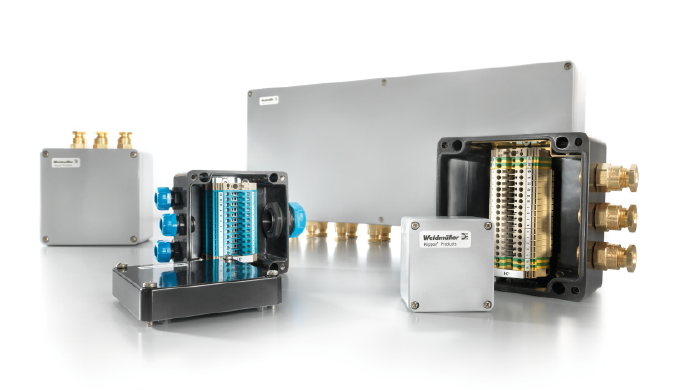

Klippon POK

Klippon POK enclosures are made from high-quality glass-fibre reinforced polyester. They are suited for applications and environments where corrosion and impact resistance, as well as a high IP protection, are required. The range is also designed and certified for use in hazardous areas.

Your benefits

The enclosure lid is secured with stainless steel captive cross-head screws
Direct fastening of enclosure via rear side fixing holes
Especially designed for applications installed in hazardous areas
Increased impermeability of each enclosure due to closed moulded seals guarantees IP 54 up to IP 66
The enclosures are extremely rugged, weather resistant, and can resist impacts up to 7 joules due to their high fibreglass content

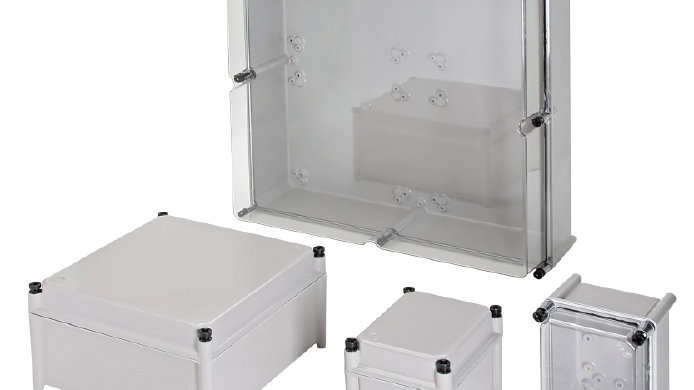

TBF Polyester Enclosures

The enclosures in the TBF range are made from sturdy glass-fibre reinforced polyester. They offer a universal solution for protection of components such as controllers, measuring instruments, valves and other devices. The TBF enclosures are available with either transparent or grey lids

Your benefits

Direct fastening of enclosure via rear side holes
The fibre-glass reinforced polyester is designed for high surrounding temperatures
The sealing material of these enclosures consists of polyurethane in an o-ring format
Enclosures feature holes for attaching DIN rails and mounting plates using self-tapping screws
The lids of the TBF plastic enclosure series are attached through captive nylon screws

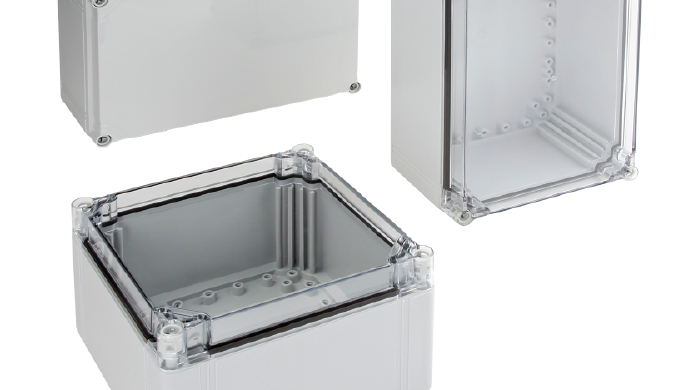

FPC and MPC

The polycarbonate enclosures from the MPC and FPC ranges are ideal for enclosing electrical, electro-mechanical and pneumatic devices as well as circuit boards. The enclosures are used in situations with extreme mechanical and chemical conditions.

Your benefits

Unauthorised opening can be prevented as lid and the lid screws have been fitted with sealed holes
The seamless seal of foamed polyurethane uniformly fits to the lid and guarantees high impermeability of each enclosure
The enclosures feature holes for attaching DIN rails and mounting plates using self-tapping screws
Flexible mounting, directly wallmounting or mounting lugs as accessories offer a flexible attachment
Available with either transparent or grey lids - transparent lid module supports a fast surveillance of the components inside the enclosure

A very flexible system allows optimum adaptation to your requirements

Customised solutions

We can fully customise our junction boxes according to your requirements.

A universal safe and secure solution

They provides a high-quality solution for all electrical connectivity applications.

High protection class

These enclosures are suitable wherever corrosion resistance and shock resistance are required.
